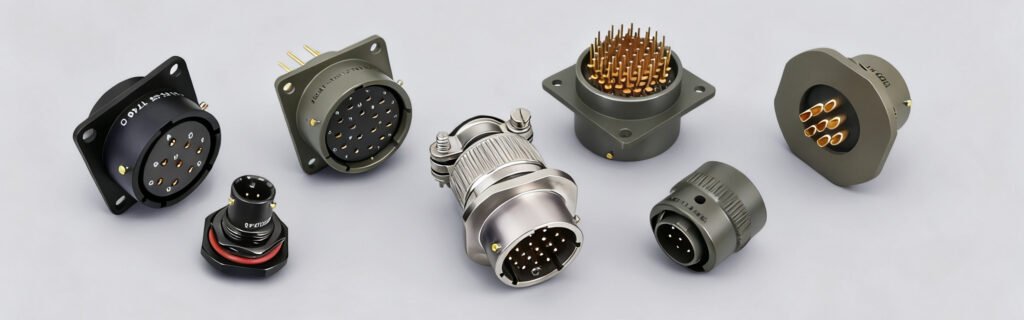

MIL-C-26482 (now MIL-DTL-26482) is one of the longest‑serving standards among military circular connectors. Since its inception in the 1950s, it has become a mainstay in aviation, aerospace, ground C4ISR, and industrial applications, thanks to its bayonet quick coupling, medium size, and high‑density contacts.

For procurement professionals, the 26482 selection system can seem complex — series, shell, plating, insert arrangement, termination — five interconnected parameters. This article breaks down each of these five parameters to help you quickly master the 26482 selection logic.

Series I vs Series II

The 26482 consists of two series. They largely overlap in shell sizes and insert arrangements, but differ fundamentally in operating temperature, termination method, and contact maintenance.

Series I

  • Operating Temperature: -55°C to +125°C

  • Termination: Solder or front‑release crimp

  • Contact Maintenance: Removed from the mating face

Series II

  • Operating Temperature: -55°C to +200°C

  • Termination: Crimp, rear‑insertable / rear‑release

  • Contact Maintenance: Removed from the rear without disassembling the entire connector

Selection Tip: If your equipment operates above 125°C (e.g., engine compartments, missile sections) or requires frequent contact replacement, prioritize Series II. If budget is constrained and temperature requirements are moderate, Series I is the classic and reliable choice.

Shell Size (8–24)

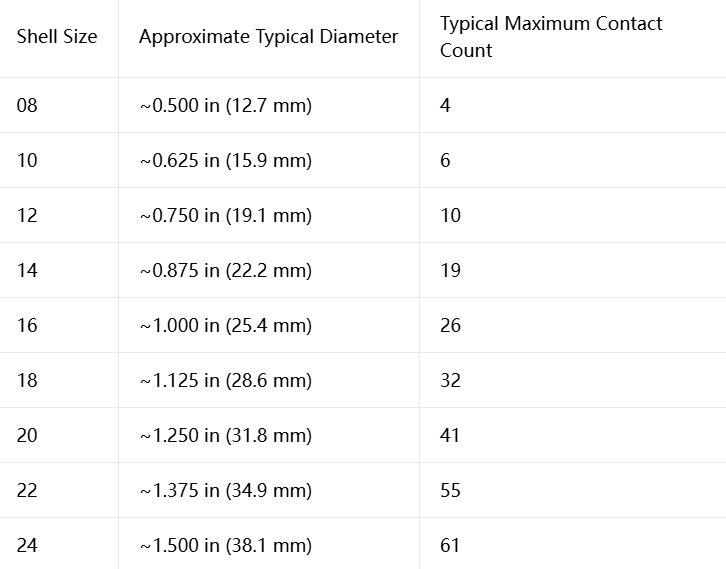

The 26482 connector is available in 9 shell sizes, numbered from 08 to 24. The shell size determines the connector’s physical diameter and maximum number of contacts it can accommodate.

Selection Principle: Larger shell sizes accommodate more contacts but also consume more panel space and add weight. Choose the smallest shell size that meets your contact count requirements to optimize SWaP (Size, Weight, and Power).

Plating (Surface Finish)

Plating determines the connector’s corrosion resistance, conductivity, and environmental adaptability. The 26482 offers multiple plating options:

Olive Drab Cadmium

  • The most traditional military plating, with excellent corrosion resistance

  • Good conductivity, providing a reliable EMI grounding path

Electroless Nickel

  • RoHS compliant, with good corrosion resistance

  • Uniform coating, suitable for precision thread fits

Black Zinc Nickel

  • RoHS compliant, with 500‑hour salt spray resistance

  • Matte black, non‑reflective surface, suitable for stealth / low‑observable platforms

Stainless Steel Passivation

  • For stainless steel shells, naturally corrosion‑resistant

  • No additional plating required

Selection Tip: Projects exported to Europe require RoHS compliance — choose electroless nickel, black zinc nickel, or other compliant platings. For domestic non‑export projects, olive drab cadmium remains a reliable choice.

Insert Arrangement (Contact Layout)

Insert Arrangement determines the number, arrangement pattern, and positions of contacts inside the connector. The 26482 offers 34+ insert arrangement patterns.

The arrangement designation is formatted as “Shell Size‑Arrangement Number” , e.g., 14‑12 means shell size 14, arrangement number 12.

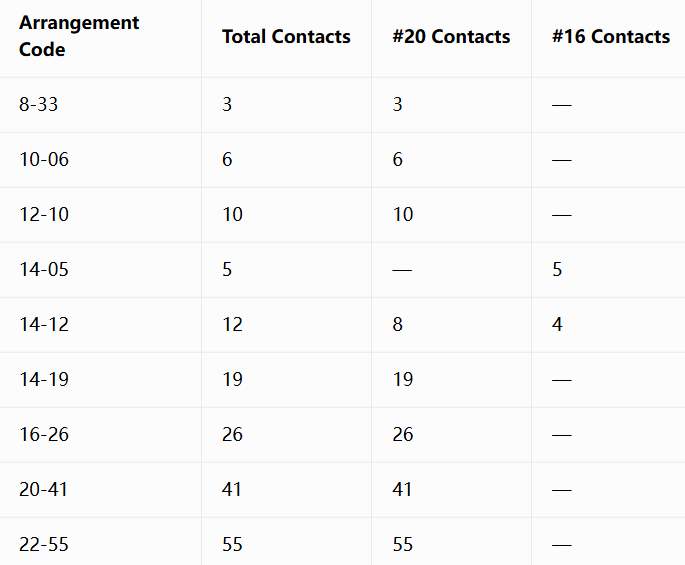

Common Arrangement Examples (Series II):

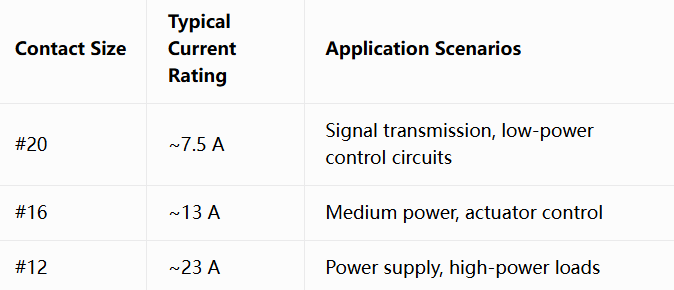

Contact Sizes and Current Ratings:

Selection Tip: First tally your signal/power requirements — how many signal lines (#20), how many medium‑power lines (#16), how many power lines (#12) — then find the corresponding arrangement number in the table above.

Termination Method

Termination determines how the connector establishes electrical connection with wires. The 26482 offers the following termination options:

Solder

  • Wires are soldered directly to the contact’s solder cup

  • Suitable for manual assembly, small‑batch production, and maintenance replacement

  • Supported by Series I

Crimp

  • Wires are crimped to contacts using specialized tools, forming a gas‑tight connection

  • Suitable for high‑volume production and automated assembly

  • Series I: Front‑release crimp

  • Series II: Rear‑insertable / rear‑release crimp

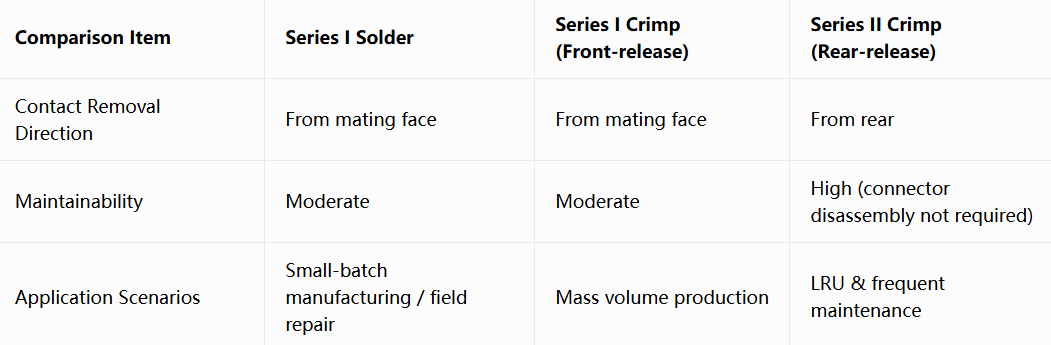

Core Differences in Termination Methods：

Selection Tip: Field maintenance/replacement needed → prioritize Series II rear‑release crimp; small‑batch or prototype → solder; high‑volume production → crimp (most efficient).

Five Parameters, One Precise Selection

Master these five parameters, and you can quickly lock onto the one matching model from dozens of 26482 arrangements. Whether it’s the stringent requirements of aerospace or the RoHS compliance for export to Europe — five parameters, one right choice.

  • 9 shell sizes (08–24) – From miniature sensor interfaces to large systems
  • compliant platings – Electroless Nickel / Black Zinc Nickel, full CE/RoHS technical documentation
  • 34+ insert arrangements – 2–61 contacts, signal/power/#12/#16/#20 full coverage
  • Multiple termination options – Solder / Front‑release crimp / Rear‑release crimp, configurable

We deliver not just connectors — but a one‑stop solution of “five‑parameter precision matching + European compliance”
