How Do Push-Pull Connectors Enable Soldiers to Quickly Connect Equipment at Night?

Our Products

That “Click” in the Darkness

A soldier is wearing night vision goggles, carrying a heavy tactical vest, with dirt and sweat on his fingers. He needs to connect his radio, GPS, night vision goggles, and weapon sight all within one minute — and ensure every single link is reliable.

On the night battlefield, a connector is never as simple as “just plug it in.” Can’t see the socket, wearing gloves, under high stress — these factors can turn a two-second operation in daylight into a two-minute struggle in the dark. And a two-minute delay on the battlefield can mean the difference between life and death.

Push-pull connectors are designed precisely to solve this problem. No need to see, no need to twist, no need to align — push to lock, pull the sleeve to release.

The Nighttime Pain Point — Why Do Ordinary Connectors Fail in the Dark?

Under nighttime or low-visibility conditions, soldiers face three challenges:

Challenge 1: Limited Vision

Night vision goggles allow soldiers to discern outlines, yet they fail to deliver sufficient detail to align the pins and sockets of miniature connectors. Smoke, dust and harsh weather prevalent on the battlefield further reduce visibility. As China’s military pointed out in night training analyses: “Individual equipment operation is barely affected by nighttime conditions, whereas tasks such as antenna setup, microwave relay radio communication and cable connection are heavily constrained by poor lighting.”

Challenge 2: Limited Tactile Feedback

Tactical gloves protect soldiers’ hands but also deprive fingers of tactile sensitivity. Threaded connectors require fine rotational operations — nearly impossible with gloves on. Bayonet connectors only need 90° of rotation, but finding that “alignment point” in the dark is still difficult.

Challenge 3: Time Pressure

In firefights or patrols, every second counts. Soldiers don’t have time to slowly fumble for the correct angle of a connector. Error rates under high stress rise significantly — inserting at an angle can damage pins, inserting incorrectly can fry equipment.

Ordinary threaded or bayonet connectors rely on “visual alignment + rotational operation,” putting them at a natural disadvantage on the night battlefield. The design philosophy of push-pull connectors is exactly the opposite: no reliance on vision, no reliance on rotation, only one motion — push.

The Nighttime Advantages of Push-Pull Connectors — Four Design Guarantees

2.1 Blind-Mate Design — Align Even When You Can’t See

The core advantage of push-pull connectors is blind mating. Fischer Connectors explicitly states: “All our connectors can be blind mated — Fischer Core, Fischer UltiMate™, Fischer MiniMax™, Fischer FiberOptic — so mating is never a problem even when you can’t see what you’re doing.”

How is this achieved? Through the following designs:

  • Multi-key polarization system: LEMO D series uses a robust 5-key orientation system to ensure secure blind mating in harsh and demanding environments. The connector can only be inserted in the correct orientation, fundamentally eliminating the possibility of “inserting it backwards.”

  • Keyless 360° mating: Fischer Freedom™ series goes even further — no key code at all. The plug’s pins automatically find the corresponding concentric tracks on the receptacle. Soldiers don’t need to think about “alignment” at all.

  • Guide features: Many push-pull connectors are equipped with guide pins or chamfered guiding surfaces on both plugs and receptacles. These features can self-align the plug into its correct mating position even when the plug approaches the receptacle at an angle. TE’s DBAS 9 series is engineered for hard-to-reach areas in aerospace applications, and its push-pull locking system is optimized specifically for blind-mate use cases.

Battlefield value: Soldiers only need to push the plug toward the socket in the dark — no visual alignment required. The connector “finds” the correct position by itself.

2.2 Auditory + Tactile Dual Feedback — “Hear” Connection Success in the Dark

When you can’t see, how does a soldier confirm the connection is locked? The push-pull connector’s answer: use your ears and fingers to “see.”

Amphenol’s push-pull connectors provide audible and tactile feedback — when the connector is fully mated, the system provides immediate feedback. “An audible and sensory click immediately indicates when the two connector halves are securely fastened, providing an important piece of feedback and assurance under high-pressure circumstances.”

Glenair Series 824 Locking Push-Pull Connectors also guarantee: “The locking push-pull mechanism provides both tactile and audible mating confirmation under the most extreme field conditions.”

Battlefield value: Soldiers don’t need to use their eyes to confirm the connection — a clear “click” and the locking sensation felt by the fingers are the most reliable confirmation signals. In the dark, this is more useful than any indicator light.

From Night Vision to Weapon Sights — Nighttime Applications of Push-Pull Connectors

Night Vision Devices

Night vision devices are the core equipment of nighttime operations and one of the devices that most need push-pull connectors. Soldiers need to connect night vision goggles to helmet power supplies, data links, or external battery packs in complete darkness — all these connections must be made without any visibility.

The ODU AMC series is explicitly specified for “military night vision devices”. Amphenol’s push-pull connectors are used to power “night vision optics, smart scopes, laser devices, and portable targeting equipment”. The LEMO OPTIMA D series is designed specifically for wearable soldier systems, including helmet-mounted displays.

Weapon Sights & Tactical Optics

Modern weapon sights integrate night vision, laser targeting, and ballistic calculation functions, requiring reliable power and data connections. When soldiers更换 sights or connect external batteries at night, the blind-mate capability of push-pull connectors makes the operation feasible.

Soldier Radios & Communication Systems

“Next-generation soldier communication systems” are one of the largest application areas for push-pull connectors. Soldiers need to quickly connect radios to headsets, data terminals, and power supplies in the dark. The ODU AMC Push-Pull design enables mating and unmating with minimal force.

Line Replaceable Units (LRUs) & Rugged Computers

In nighttime battlefield maintenance, damaged modules need to be replaced in the shortest possible time. The quick disconnect feature of push-pull connectors makes “second-level replacement” possible. In a field rugged military computer application, push-pull connectors were used across multiple critical interfaces including power input, Ethernet communication, video output, USB 3.0 data, and dedicated military communication interfaces.

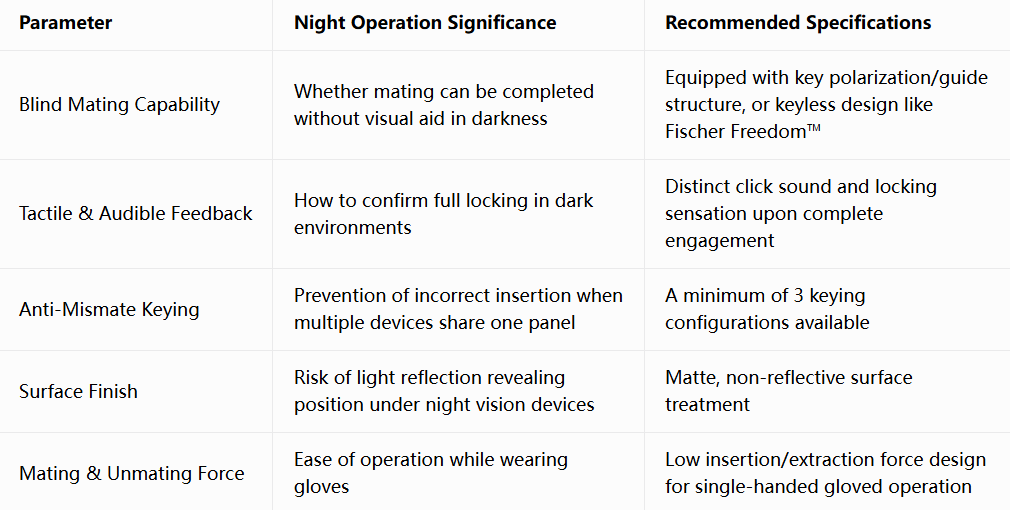

Five “Invisible” Parameters for Nighttime Connection

When procuring push-pull connectors designed for nighttime operations, in addition to常规 parameters, the following five indicators specifically affecting nighttime operation experience need attention:

Combat Validation

The nighttime suitability of push-pull connectors is not the result of theoretical deduction, but has been validated through rigorous testing and actual combat.

MIL-STD-810H Testing: The LEMO OPTIMA D series has passed MIL-STD-810H certification, capable of withstanding harsh environments, extreme vibration, and physical impact. This means connections remain reliable under vehicle jolts, weapon recoil, and explosion shocks commonly encountered in nighttime operations.

IP68 Sealing: Many military push-pull connectors offer IP68 protection — waterproof and dustproof in both mated and unmated states. In nighttime rain, water crossing, or muddy environments, the connector interior won’t take in water.

5,000 Mating Cycles: Both ODU AMC and Fischer UltiMate™ series offer 5,000+ mating cycles. In frequent nighttime training and actual combat, connectors won’t prematurely fail due to mating wear.

Non-Reflective Surface: The LEMO OPTIMA D series features a low-profile, non-reflective, corrosion-resistant finish, ideal for stealth applications. ODU AMC also offers a non-reflective surface on its rugged housing. Under night vision, these connectors won’t reflect light and expose the soldier’s position.

In the Dark, Every “Click” Is a Confirmation

On the night battlefield, soldiers cannot visually confirm every connection — they must rely on the equipment’s “feedback.” The blind-mate capability, tactile feedback, audible confirmation, and one-hand operation provided by push-pull connectors transform connection operations from “need to see” to “no need to see.”

A clear “click” is confirmation of a successful connection — in the dark, this is more reliable and more direct than any indicator light.

From night vision goggles to helmet-mounted displays, weapon sights to individual soldier radios, push-pull connectors simplify the connection of night-use equipment to the same ease as daytime operations.

On those invisible battlefields, push-pull connectors are守护ing every soldier’s safety and mission completion with every “click.”
