One Interface, Three Missions

Modern military platforms — whether fighters, UAVs, ships, or ground C4ISR systems — all face a common challenge: how to simultaneously transmit power, signal data, and high-speed fiber optic communication through a single connector interface?

The traditional solution was to deploy them separately — power connectors for power, signal connectors for signals, and fiber optic connectors for fiber optics. But this approach brings problems: bulky harnesses, increased weight, wasted panel space, and reduced reliability.

The MIL-DTL-38999 series connector provides an elegant answer through its highly modular insert arrangement design: mixed configuration of power contacts, signal contacts, and fiber optic contacts within the same shell and the same interface.

This article breaks down how the 38999 connector achieves “one interface, three missions” from three dimensions: power transmission, data transmission, and fiber optic communication.

Power Transmission — From Milliamps to 500 Amps

The power transmission capability of the 38999 connector covers the full spectrum from low-power signal supply to high-power main power distribution.

Standard Signal-Level Power:

  • Contact size #22D: 5A current rating

  • Contact size #20: 7.5A current rating

  • Contact size #16: 13A current rating

These standard contacts are sufficient for sensors, control circuits, and low-power equipment.

High-Power:

  • #8 contacts: up to 46A

  • High-power contacts: 60A, 100A, 230A, and even 500A

  • Voltage rating: up to 900VAC / 1250VDC

This means a single 38999 connector can power everything from soldier radios to shipboard radars — from a few amps to hundreds of amps, full coverage.

Key Design Features for Power Transmission:

  • Hermetic crimp: High-power contacts use gas-tight crimp technology for long-term reliable electrical connections

  • High Temperature Resistance: Operating temperature ranges from -65°C to +200°C, suitable for extreme environments

  • 500 mating cycles: Meets the mating demands of military equipment throughout its lifecycle

Data Transmission — From Signals to High-Speed Data

Beyond power, the 38999 connector also handles a large volume of signal and data transmission tasks.

Signal Contacts:

The 38999 offers over 60 insert arrangements, supporting high-density configurations from 2 to 128 contacts. Contact sizes include #22D, #20, #16, #12, etc..

High-Speed Data Contacts:

The 38999 supports multiple high-speed data transmission contact types:

  • Coaxial contacts: for RF and video signals

  • Twinax contacts: for high-speed differential signals

  • Quadrax contacts: supporting data rates above 10Gbps

Data Interface Compatibility:

The 38999 connector platform is compatible with modern high-speed interface standards:

  • Ethernet

  • USB

  • DVI / HDMI video

  • Supporting data rates from 100 Mbps to 4.25 Gbps

High-Density Version:

For applications requiring extreme density, the HD38999 series offers 30% more contact density than standard 38999 in the same size— more signal channels in the same shell size.

Fiber Optic Communication — The Leap from Copper to Light

When data rate requirements exceed the physical limits of copper, the 38999 connector turns to fiber optics.

Fiber Optic Contact Options:

38999 Series III supports multiple fiber optic contact types:

  • MIL-PRF-29504 standard fiber optic contacts: mature military fiber optic contact standard

  • HDF20 fiber optic contacts: multi-channel fiber optic termini

  • ARINC 801 fiber optic contacts: avionics standard fiber optic interface

  • MT Ferrule: One-step alignment for multi-core optical fibers


Key Parameters of Fiber Optic Transmission:

  • Supports singlemode and multimode fiber

  • Data rates: 100 Mbps to 4.25 Gbps

  • Expanded beam contacts offer high resistance to dirt and dust; standard ferrule contacts offer low insertion loss

Advantages of Fiber Optics:

  • Longer transmission distances: far exceeding copper

  • Extremely high bandwidth: supporting future higher data rates

  • Lighter weight: significant weight reduction compared to copper

Hybrid Configuration — Three Capabilities, One Interface

The 38999’s most powerful capability is: mixed configuration of power contacts, signal/data contacts, and fiber optic contacts within the same shell.

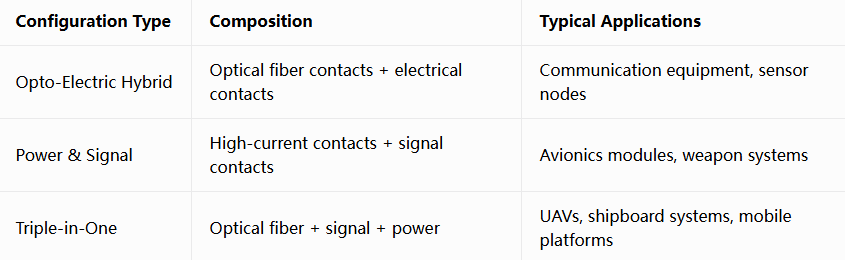

Typical Hybrid Configurations:

Core Advantages of Hybrid Configuration

Advantage 1: Fewer Connectors:

One hybrid connector replaces the power connector, signal connector, and fiber optic connector that would otherwise be required. Interfaces on the panel are reduced from three to one, and cable harnesses from three to one.

Advantage 2: Weight and Space Savings:

Fewer connectors and cables mean lighter weight and less panel space — for SWaP-sensitive (Size, Weight, and Power) platforms such as UAVs, missiles, and spacecraft, this is a decisive advantage.

Advantage 3: Improved Reliability:

Fewer connection points mean fewer potential failure points. A single hybrid connector is more reliable than the sum of three separate connectors.

Advantage 4: Simplified Logistics:

A unified interface standard means fewer spare part types and simpler maintenance training.

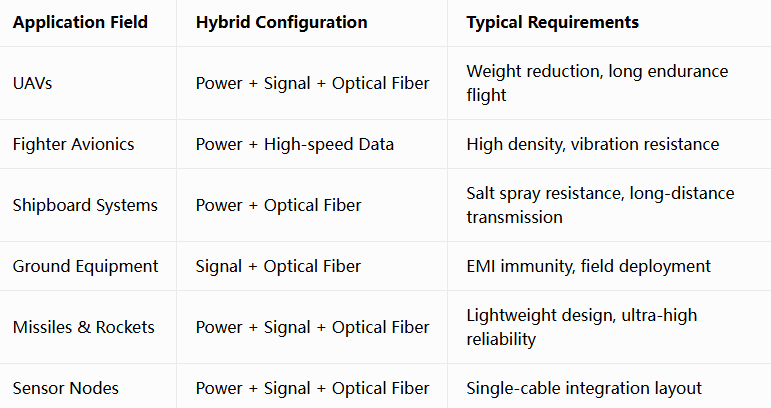

Application Scenarios

The 38999 connector has dominated the military domain for over half a century, not only because of its high reliability, environmental sealing, and multiple coupling options, but also because its modular insert arrangement design enables the hybrid configuration of power, signal, and fiber optics — one interface, three missions.

From a few amps for soldier radios to hundreds of amps for shipboard radars; from low-speed sensor signals to 10Gbps high-speed video and Ethernet data; from short-distance copper to long-distance fiber optics — a single 38999 connector carries it all.

This is why the 38999 connector has become a military standard: it is not just a connector, but a unified platform integrating power, signal, and fiber optic communication.

Every power, signal, and fiber configuration described above — our product line covers all of them, and all are available with RoHS-compliant plating options (Black Zinc Nickel / Electroless Nickel), ensuring your equipment enters the European market smoothly.
