How to Select the Right MIL‑DTL‑26482 Series Connector

The MIL‑DTL‑26482 series is a crucial set of standards for circular, quick‑disconnect, environmentally resistant electrical connectors within U.S. military specifications. Widely used in aerospace, military equipment, industrial machinery, and other demanding sectors, these connectors deliver reliable electrical performance even under harsh environmental conditions. Selecting the right model is essential to ensuring system performance and reliability. This article will guide you through the key considerations for choosing the appropriate MIL‑DTL‑26482 connector.

Understand the Basic Characteristics
Quick‑disconnect design: Typically featuring push‑pull or threaded coupling mechanisms for fast connection and disconnection.

Environmental sealing: Provides excellent resistance to dust, water, and corrosion; some models can operate under extreme conditions such as high pressure and high humidity.

Multiple contact types: Supports signal, power, high‑frequency, and mixed‑contact configurations.

Robust metal housing: Common materials include aluminum and stainless steel, offering mechanical protection and electromagnetic shielding.

Standardized interfaces: Complies with stringent military performance and testing requirements to ensure interchangeability and reliability.

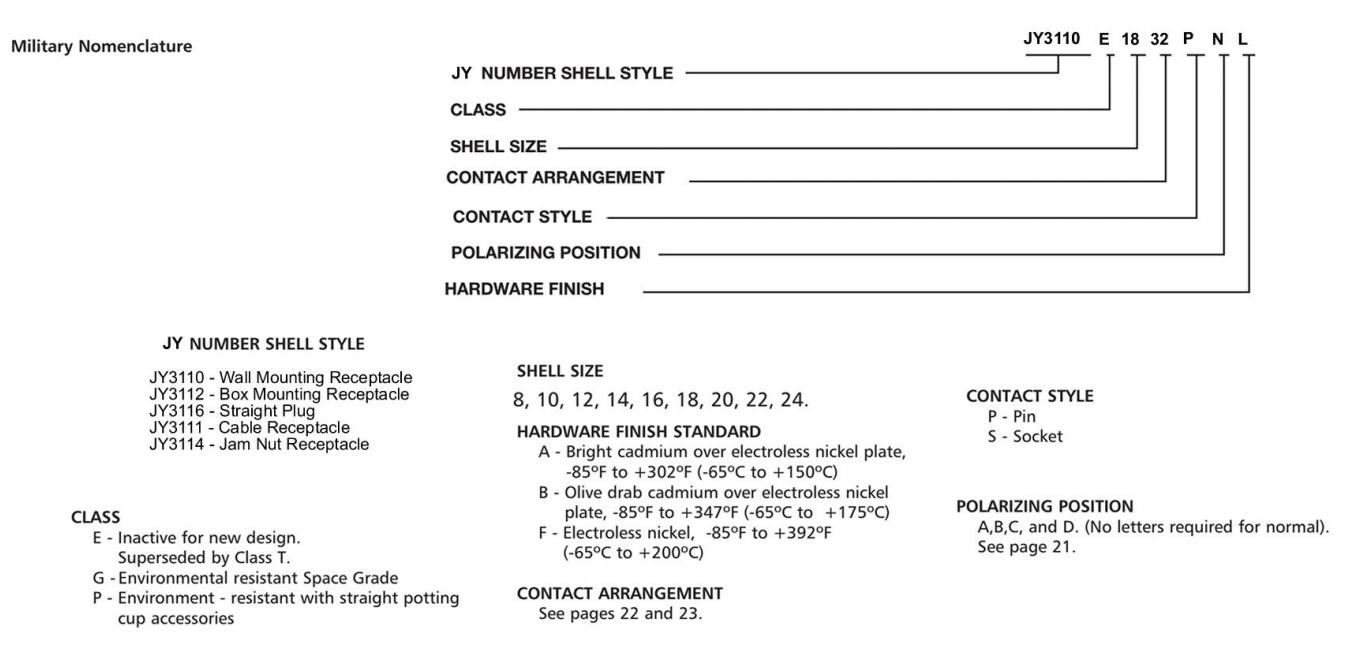

Ordering Series Reference

Common Application Scenarios and Model References
Avionics equipment: Lightweight aluminum‑housed models with locking threads are often selected to ensure stability in high‑vibration environments.

Ground military vehicles: More robust stainless‑steel housings and higher‑level dust and waterproof performance may be required.

Industrial control systems: In non‑military applications, commercially available (COTS) alternatives with equivalent performance can be chosen to reduce costs, but environmental suitability still needs to be evaluated.

Selecting a MIL‑DTL‑26482 connector for your project essentially involves precisely matching your application requirements with the connector’s specifications and characteristics. It is recommended to follow this process:

Define requirements: List all electrical, mechanical, environmental, and budget requirements.

Filter specifications: Use the standard documents and manufacturer catalogs to perform an initial screening.

Consult experts: Communicate with connector suppliers or engineers to obtain specific recommendations.

Sample testing: Whenever possible, conduct tests on the candidate models under actual application conditions.

Common Selection Pitfalls

Pitfall 1: Focusing only on current requirements and ignoring future expansion and compatibility

When selecting a connector, it is important to not only meet the current contact count requirements but also consider future upgrades by reserving spare contacts or choosing a larger‑size shell. At the same time, you must ensure that the selected connector is fully mechanically and electrically compatible with existing connectors of the same type in the system.

Pitfall 2: Confusing “commercial‑grade” with “mil‑spec‑grade” models
In the market, there are military‑standard (MS) models that fully comply with the MIL‑DTL‑26482 standard (such as the MS3126E), as well as “style” products manufactured to commercial specifications with similar performance (such as the PT06SE). For mission‑critical applications, models with complete military‑spec certification and traceability should be prioritized.

Pitfall 3: Underestimating the challenges of environmental harshness on sealing and materials

If the application environment involves exposure to fuel, hydraulic fluid, or continuous salt spray, selecting a standard seal may not be sufficient. It is necessary to specify elastomer sealing materials that are resistant to specific fluids  and to consider the use of stainless steel housings and corrosion‑resistant plating.
