In the world of military circular connectors, MIL-DTL-38999 is a name you cannot avoid. Born in the 1970s as MIL-C-38999, it was developed to meet the trend toward “more signal, less power” in military avionics at the time. After decades of evolution, it has become one of the most popular and widely used connector standards in global military aviation, aerospace, and demanding industrial environments.

The MIL-DTL-38999 standard defines four distinct series: Series I, Series II, Series III, and Series IV. They share the same core specifications — environmental resistance, removable crimp contacts, and an operating temperature range of -65°C to +200°C — but they are not interchangeable or intermateable with each other. This article uses clear comparisons to help you understand the core differences of all four series at a glance and provides practical selection guidance.

MIL-DTL-38999 Standard Overview

MIL-DTL-38999 (formerly MIL-C-38999) is a military specification that defines miniature, high-density, circular connectors. Originally issued in the 1970s, it remains widely used today. It features removable crimp contacts and an operating temperature range of -65°C to +200°C.

The standard defines four different connector series. All of them feature high contact density, are available in 9 shell sizes (09 through 25), and support a wide variety of contact types, including signal, power, coaxial, twinax, and fiber optic. The core differences among the four series lie in their coupling mechanisms, scoop-proof design, mating cycles, and optimization priorities.

Series I — The Classic Choice for Bayonet Coupling

Coupling Mechanism: 3-Point Bayonet Coupling

Series I features 3-point bayonet coupling. Three bayonet pins on the plug mate with three slots on the receptacle, locking with approximately 120° (one-third of a turn) . Bayonet coupling is characterized by quick disconnect, making it suitable for blind-mating areas that require fast mating and unmating.

Key Features:

  • 100% Scoop-Proof: Pins are recessed within elongated shells, preventing contact damage even if the plug is inserted at an angle
  • High Vibration Resistance: Suitable for high-wind and moisture environments
  • Five-Key/Keyway Polarization: 5 positioning options eliminate misinsertion risk
  • Grounding Fingers: Provide EMI shielding
  • Mating Cycles: 500
  • Bend Moment: 650 lbs in

Typical Applications: Avionics systems, flight-critical electronics, defense and weapon systems, ground support equipment. Series I is commonly used where a quick disconnect coupling system is required for blind mating or other mating-difficult areas.

Series II — The Low-Profile Choice for Lightweighting

Coupling Mechanism: Low-Profile Bayonet Coupling

Series II also uses bayonet coupling, but with a lower profile and lighter weight. To achieve its reduced height and weight, Series II is not scoop-proof.

Key Features:

  • Not Scoop-Proof: Pins are exposed, requiring careful alignment during blind mating
  • Low-Profile Design: Reduced shell height saves panel space
  • Lightweight: Lighter than standard Series I
  • Mating Cycles: 250
  • Bend Moment: 150 lbs in

Important: Due to its lack of scoop-proof protection, Series II is not suitable for blind-mating applications. For applications requiring blind mating, choose Series I, III, or IV.

Typical Applications: Space- and weight-sensitive applications — avionics, medical technology, communication equipment. Series II is suitable where the connector is not subjected to high vibration or moisture, and where space or weight is at a premium due to its lower profile.

Series III — The High-Performance King of Tri-Start Thread

Coupling Mechanism: Tri-Start ACME Thread

Series III is the highest-performance series in the 38999 family, designed for general-purpose and severe-environment applications. It features Tri-Start ACME Thread coupling, locking completely with one full turn (360°) .

Key Features:

  • 100% Scoop-Proof: Pins are protected
  • Self-Locking Thread: Coupling nut features an anti-decoupling mechanism — no lockwire required
  • Extremely High Vibration Resistance: Suitable for high-temperature, high-moisture, high-wind, and high-vibration environments
  • EMI Shielding: Minimum 40dB at 10GHz
  • Mating Cycles: 500
  • Composite Shell Option: Up to 40% lighter than aluminum, 4x better corrosion resistance, and 1,500 mating cycles
  • Fiber Optic Contacts Supported
  • Bend Moment: 1000 lbs in

Typical Applications: Series III is the most commonly used choice in military and aerospace designs. Widely used in fighter avionics, missile systems, satellites, engine compartments, and other harsh environments.

Series IV — The Rugged Choice for Breech-Lok Coupling

Coupling Mechanism: Breech-Lok (Quarter-Turn)

Series IV features Breech-Lok coupling, inspired by artillery breech locking mechanisms. After insertion, the plug locks with a quarter-turn (approximately 90°) .

Key Features:

  • 100% Scoop-Proof: Pins are protected
  • Extremely High Vibration Resistance: Performs excellently in shock and vibration environments
  • Lightweight Design
  • Suitable for Blind-Mating Applications
  • Mating Cycles: 500
  • Bend Moment: 1000 lbs in

Typical Applications: Rack and panel equipment, missile systems, aerospace. Suitable for applications requiring robust locking and extreme vibration resistance. Particularly well-suited for Line Replaceable Units (LRUs) requiring quick disconnect.

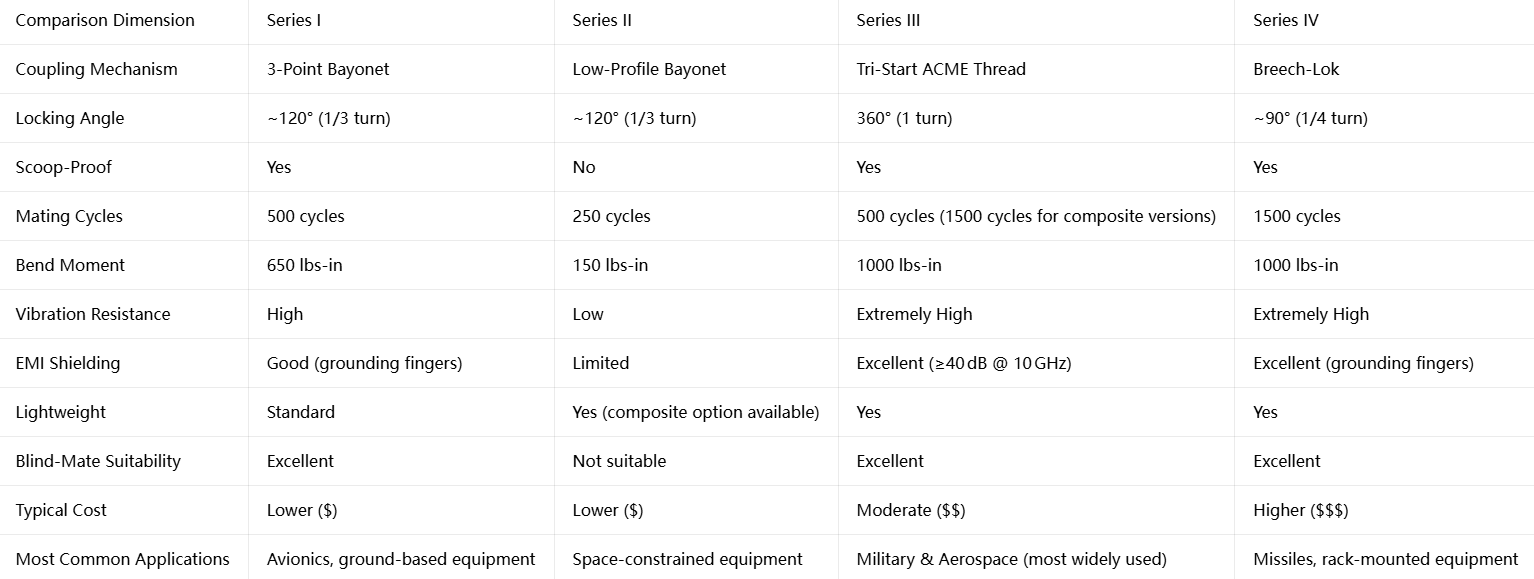

Core Parameter Comparison Table of the Four Series

Selection Guide — Four Questions to Help You Lock In the Right Answer

Q1: Is blind mating required?

✔  Yes (rack backplanes, dark environments, areas difficult to visually align) → Exclude Series II. Choose Series I, III, or IV.

✖  No (visually alignable) → Series II is an option

Q2: Is the application in a high-vibration environment?

✔  Yes (fighters, helicopters, missiles, engine compartments) → Series III (preferred) or Series IV

✖  No → Move to next question

Q3: Are space and weight extremely limited?

✔  Yes → Series II (low-profile, lightweight) or Series III (composite shell option)

✖  No → Move to next question

Q4: Is the highest level of vibration and shock protection required?

✔  Yes (missile launch, extreme battlefield environments) → Series IV (Breech-Lok, excellent vibration resistance)

✖  No → Series I or Series III are both acceptable

Final Recommendation:

Key Features:

  • When there are no special restrictions, choose Series III first — it is the most comprehensive and widely used series in the 38999 family.

  • If space and weight are the primary constraints and blind mating is not required → Series II

  • If extremely quick mating and robust locking are required (e.g., battlefield LRUs) → Series IV

The four series of MIL-DTL-38999 each have their own irreplaceable value proposition:

  • Series I: The classic choice for bayonet coupling — reliable, fast, scoop-proof

  • Series II: The low-profile choice for lightweighting — saves space and weight, but sacrifices scoop-proof protection

  • Series III: The high-performance king of tri-start thread — the most comprehensive performance, the default choice for military aviation

  • Series IV: The rugged choice for breech-lok — ultra-fast locking, extreme vibration resistance

Master the core differences of the four series, and you can quickly lock onto the one matching model from dozens of MIL-DTL-38999 configurations. Remember: Series III is the safest all-around choice, but in specific scenarios, other series may be the better solution.
