One Choice, Two Logics

In the world of connectors, military connectors and industrial connectors may look very similar — both have metal shells, both have pins and sockets, and both have locking mechanisms. But their design philosophy, testing standards, and mission positioning are fundamentally different.

Military connectors are designed with the premise of “failure is not an option”  — before a fighter jet crashes, the connector must not fail. Industrial connectors are designed with the premise of “cost-effective stability” — providing sufficient reliability within budget.

This is not a question of which is better, but which is more suitable for your application scenario. This article clarifies the core differences between military and industrial connectors across dimensions such as standards, materials, environmental adaptability, durability, and cost.

Standard Systems — The “Rules of the Game” for Military vs Industrial

Military Connectors:

Military connectors follow the MIL-DTL series standards issued by the U.S. Department of Defense. These standards have strict requirements for materials, design, testing, and documentation. Common military standards include MIL-DTL-38999, MIL-DTL-26482, MIL-DTL-5015, etc..

Some military connectors must also be listed on the QPL (Qualified Products List) — manufacturers must pass independent audits, and every material lot, plating thickness, and dimensional tolerance must meet the governing standard.

Industrial Connectors:

Industrial connectors follow international or industry standards such as IEC, ISO, UL, and NEMA. These standards focus on application-specific performance and cost-effectiveness within commercial lifecycles.

Industrial standards do not require the same level of global interoperability and strict documentation traceability as military specifications. They are more flexible, but this also means that products from different manufacturers may not be intermateable.

Design and Materials — Heavy Armor vs Lightweight Armor

Military Connectors:

Military connectors use high-strength materials, including aluminum, stainless steel, and high-grade thermoplastics. Shells are precision-machined with thicker walls. Surface finishes use special platings (such as cadmium, zinc-nickel, and hard anodize) to enhance durability.

They include keyed shells and threaded/bayonet/push-pull couplings to prevent accidental unlatching. The design goal of military connectors is: repeated use under extreme conditions without failure.

Industrial Connectors:

Industrial connectors use thinner metal or plastic housings. They rely on simple gaskets or open designs to meet protection requirements. Locking methods are mostly snap-lock or friction-fit.

The design goal of industrial connectors is: within controlled costs, meeting the environmental and life requirements of specific applications.

Environmental Adaptability — The Ultimate Test of Temperature, Salt Spray, and Vibration

The gap in environmental adaptability between military and industrial connectors is their most significant difference.

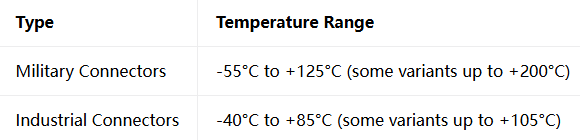

Operating Temperature:

Military connectors have an operating temperature range approximately 60°C to 100°C wider than industrial connectors. In Arctic cold and desert heat, this difference means the difference between “working normally” and “complete failure”.

Salt Spray Resistance:

  • Military connectors (such as MIL-DTL-38999) must remain sealed after 48-72 hours of exposure to neutral salt fog. Some military platings (such as zinc-nickel) can withstand 500 hours or even 2,000 hours of salt spray.
  • Industrial connectors are typically not subjected to such stringent salt spray testing.

Shock and Vibration:

Military connectors must pass MIL-STD-810 and MIL-STD-202 test standards. They must withstand shock and vibration at the level of gunfire and rocket launch.

Industrial connectors typically only pass IEC or UL general environmental tests.

Sealing and EMI Shielding — Waterproofing vs Electromagnetic Defense

Sealing Rating:

Military connectors use multi-stage sealing (O-rings + gaskets + interfacial seals), with common protection ratings of IP67 or IP68. Some military push-pull connectors achieve IP68 even in the unmated condition.

Industrial connectors typically offer basic dust/splash protection (IP50 to IP65) and are not suitable for immersion.

EMI Shielding:

Military connectors feature built-in electromagnetic shielding — fully conductive shells, conductive gaskets, and shielded backshells together form 360° omnidirectional shielding. They must pass the stringent EMC standards of MIL-STD-461.

Industrial connectors have limited shielding capability, typically relying only on basic metal housings. They typically only meet basic FCC/IEC emission limits.

Durability and Life — 500 Cycles vs 5,000 Cycles

Mating Cycles:

  • Military connectors typically offer 500 to 1,000 mating cycles. High-quality push-pull military connectors can achieve 2,000 to 5,000 cycles.
  • Industrial connectors typically offer 100 to 500 mating cycles

Key difference: The 500 cycles of a military connector are tested under extreme environmental conditions — heat, cold, vibration, and salt spray all at once. The 500 cycles of an industrial connector are measured under ideal laboratory conditions. In actual battlefield environments, the life gap between the two may be even larger.

Quality Traceability:

Military connectors have a complete quality traceability system — every material lot and every process step is documented. Industrial connectors have relatively limited traceability.

Cost — Where Does It Cost More, and Where Does It Save?

Why Military Connectors Cost More:

  • Higher material costs: High-strength alloys, precision machining, special platings

  • Higher testing costs: Full environmental and EMC testing per MIL-STD-810, MIL-STD-202, MIL-STD-461, etc.

  • Documentation and traceability costs: QPL certification, complete material and process records

  • Supply chain costs: Long-term supply commitments, spare parts inventory

Why Industrial Connectors Cost Less:

  • Lower material costs: Thinner metal or plastic housings, simple platings

  • Lower testing costs: Only need to pass general tests such as IEC/UL

  • Fewer documentation requirements: No QPL certification or complete military documentation traceability required

Selection Decision

Choose Military When:

  • Equipment operates in extreme temperatures, high vibration, and high salt spray environments
  • The consequence of connector failure is catastrophic — loss of life, mission failure
  • Long-term supply assurance is required (10-30+ years of equipment life)
  • Full quality traceability and documentation are required

Choose Industrial When:

  • Equipment operates in moderate or controlled environments
  • The consequence of connector failure is manageable — downtime for repair, but no safety risk
  • Cost is the primary constraint
  • Product lifecycle is shorter (3-5 years), no long-term spare parts support needed
  • No special traceability requirements

An important reminder: Not every “rugged-looking” connector is a military connector. Many industrial connectors also use metal shells and threaded locking, but they have not passed MIL-STD testing and do not have QPL certification. When selecting, look at the standard, not the appearance.

No Single Best, Only the Most Suitable

The difference between military and industrial connectors is not about which is “better,” but which is more suitable for your application scenario.

Military connectors are designed for “failure is not an option” — they are stronger, more corrosion-resistant, more vibration-resistant, and more EMI-resistant, but also more expensive, heavier, and have higher documentation requirements.

Industrial connectors are designed for “cost-effective stability” — they are reliable enough in specific environments, cost less, and deliver faster, but may not be up to the task under extreme conditions.
