Home>MIL-DTL-D38999 Connector>D38999 Series I>MIL-DTL-38999 Connectors D33999 Series Ⅰ MS27466T09F35PN-H 09-35S Female Box Mounting Receptacle，Shell No.09 35Pin

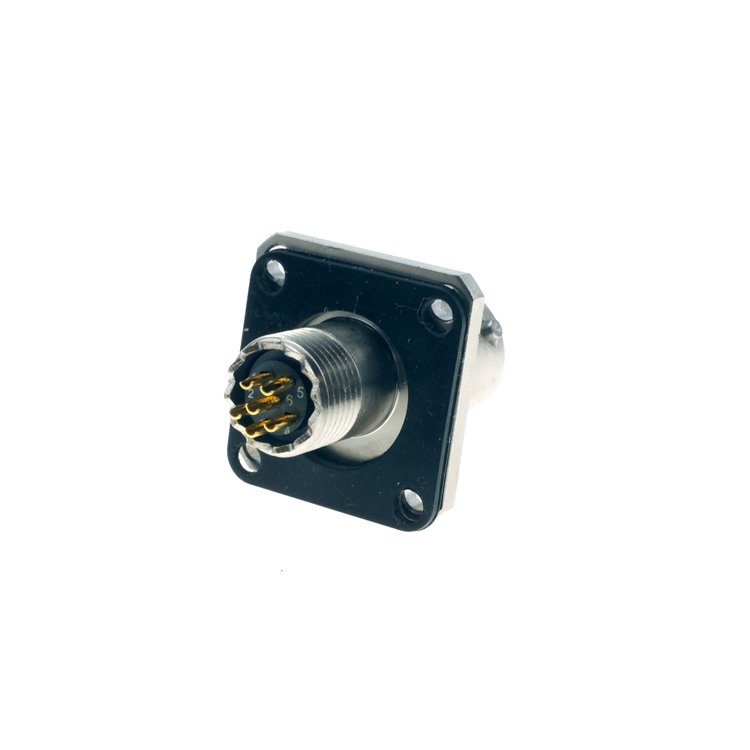

MIL-DTL-38999 Connectors D33999 Series Ⅰ MS27466T09F35PN-H 09-35S Female Box Mounting Receptacle，Shell No.09 35Pin

MIL-DTL-38999 Connectors D33999 Series Ⅰ MS27466T09F35PN-H 09-35S Female Box Mounting Receptacle，Shell No.09 35Pin

  • Shell Size：09
  • Number of Pins：35
  • Rated Current：5A
  • Rated Voltage：1500V DC
  • Material: Aluminum Alloy/Stainless Steel
Get a Quote
Connector TypeBox Mounting Receptacle
Operating Temperature-65℃~200℃
Number of Pins35
Shell MaterialMetal
Type of contactSolder Pin
OrientationN

MIL-DTL-38999 Series I

Coupling Mechanism: Bayonet-type, quick-disconnect.
Applications: blind-mating or hard-to-reach areas requiring rapid
connections, such as high-vibration and high-humidity environments. Features
a scoop-proof design to protect contacts from damage.
Materials: Offers finishes like electroless nickel, cadmium/olive drab, and anodized
coating, with both conductive and non-conductive options available.
